Leica Lino L2G Crossline Laser Level

Leica Lino L2G Crossline Laser Level

SKU: 864420 Category: Line & Point Lasers

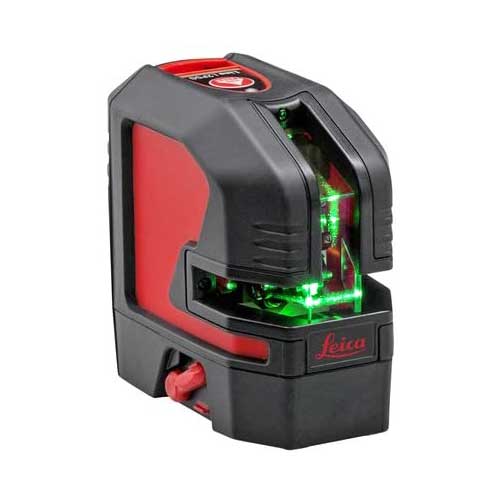

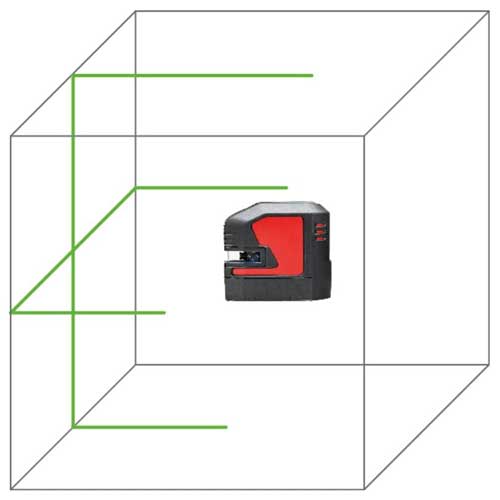

The Leica Lino L2G cross line laser projects highly visible lines at right angles to one another. The time-consuming and tedious task of drawing lines on a wall is a thing of the past. The Leica Lino L2G features high accuracy of 1mm@5meters. With its multifunctional magnetic adapter, the Leica Lino L2G can be quickly set-up or attached to walls, shelves or profiles.

  • Working Range: Up to 35m* > 80 m with detector
  • Handy size – easy to fit in any professional toolbox
  • Soft grip components prevent slipping
  • Projection and leveling accuracy of ± 1mm @ 5m
  • Self leveling function The instrument levels itself in the range of ± 4°
  • IP54 dust and splash water protected
Enquire Now
Description
Key Features of Leica Lino L2G – the cross line laser

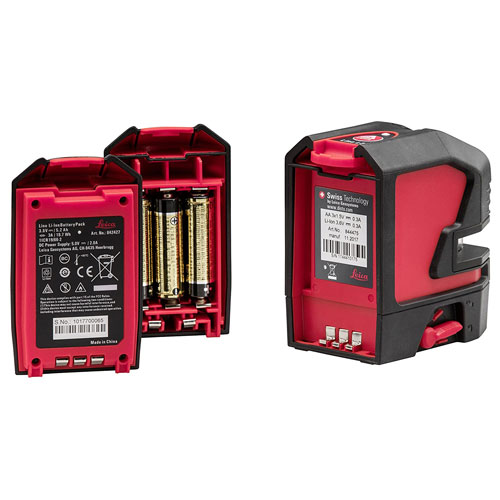

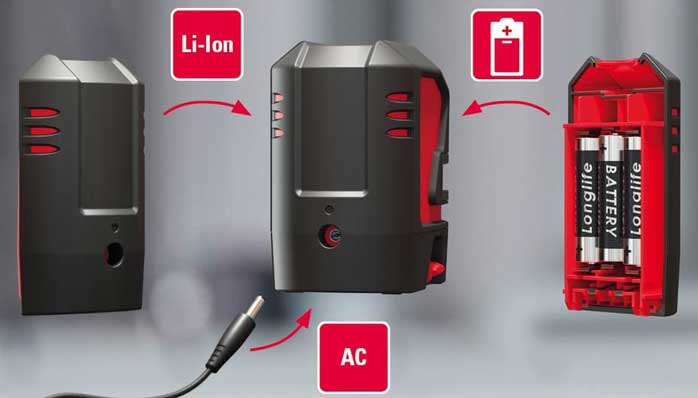

Triple Power Concept
  • The Leica Lino L2G’s triple power concept ensures an uninterrupted workflow. You can power your laser by using rechargeable Li-Ion batteries for up to 28 hours on one charge. Alternatively, you can use Alkaline batteries or simply its charger.

Always Level

  • The Leica Lino L2g Is A Self-levelling Laser. It Automatically Corrects Its Positioning When Out Of Level Up To ± 4°. The Laser Beams Flash If The Tilt Is Outside This Range To Prevent Errors.

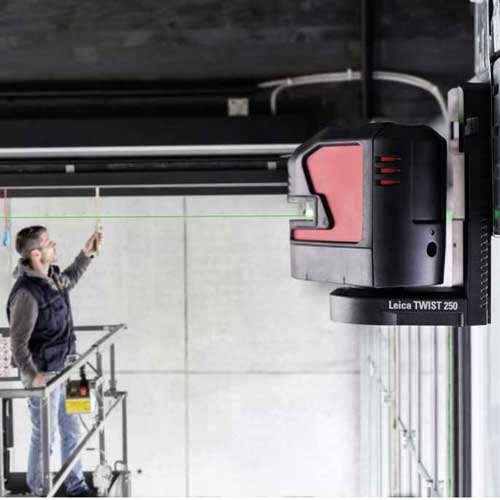

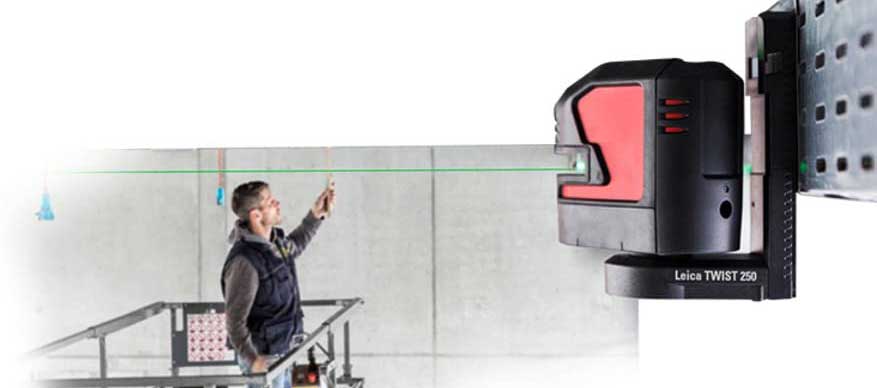

Magnetic Smart Adapters

  • Magnetic Smart Adapters Allow You To Quickly Position Your Lino L2g With Absolute Precision. You Can Set Up The Rotatable Adapter Over Edges And Profiles, Or Attach It To Iron Pipes, Tracks And Bars With The Addition Of The Ual 130 Adapter.

Construction Site Proof

  • The Leica Lino L2g Is Dust And Spray Water Protected To Ip 54 Standards And Comes In A Hard Case Allowing You To Store All Accessories Safely.
Leica Lino L2G Pro Laser Level Technical Specifications
Laser 2 lines (green)
Beam direction/fan angle Vertical / >170°, Horizontal / >180°
Range* 35 m (115 ft)
Range* with receiver 80 m (262 ft)
Levelling accuracy

±0.2 mm/m  or  ±1.0 mm @ 5m  or  ±2.0 mm @ 10m

±0.002 in/ft  or  ±0.04 in @ 16ft  or  ±0.08 in @ 33ft
Horizontal/Vertical line accuracy ±0.3 mm/m (±0.004 in/ft)
Self-levelling range ± 4 °
Self-levelling time < 3 s
Out-of-level warning Yes → blink lines every 5 s
Levelling system Automatic pendulum
Pendulum Lock Yes
Laser type 525 ± 5 nm, Class 2 acc. IEC 60825-1
Protection class IP 54 (IEC 60529) dust and splash water
Drop resistance 6 x 0.5 m (1.64 ft)
Battery type Lino Li-Ion battery pack 5200 mAh / 18.7 Wh
Operating time with Li-Ion battery 15h (2 beam) – 28h (1 beam) continuous
Operating time with alkaline batteries 4h (2 beam) – 7h (1 beam) continuous
Low power alert Status LED red
Automatic shut-off Available
Dimensions (L x W x H) 110 x 60 x 100 mm (4.33 x 2.36 x 3.93 in)
Weight with Li-Ion battery 530 g (1.17 lbs)
Operating temperature -10…+50 °C (+14…+122 °F)
Storage temperature -25…+70 °C (-13…+158 °F)
Temperature alert Status LED blinks red (5Hz)
Laser line width at 5m distance < 2 mm (<0.08 in)
Beam divergence < 1.5 mrad
Tripod thread 1/4’’ (+ 5/8’’ with adapter)
Pulse power for receiver Yes, auto
Size Info’s Case Single 1 pcs = 33.5 cm x 38 cm x 17 cm   Weight: 4.1 kg

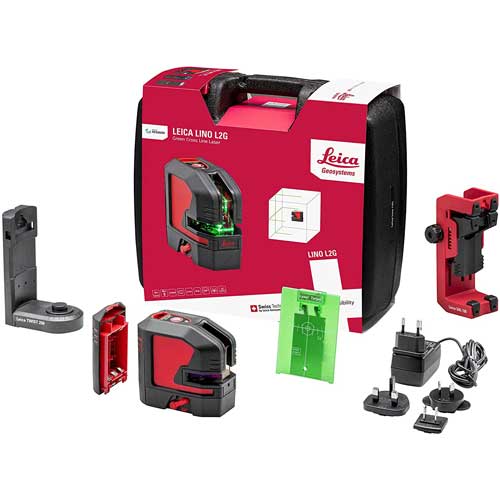

Leica Lino L2G Scope of delivery:
  • Leica Lino L2G
  • Twist 250
  • UAL 130
  • Case
  • Li-Ion battery
  • Charger
  • Alkaline battery tray
  • Target Plate
Video of Leica Lino L2G Crossline Laser Level
